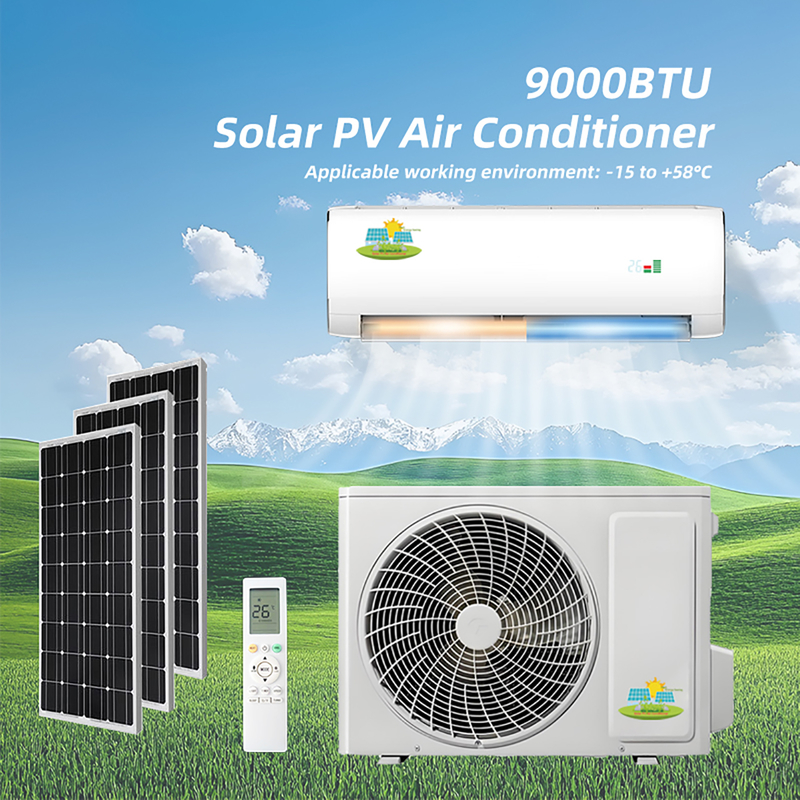

9000-12000BTU Solar Air Conditioner with 550W Panels
รายละเอียดสินค้า:
| ชื่อแบรนด์: | Anbosunny |
| Model Number: | COL-09GW-ACDC-TH |
| เอกสาร: | ใบแสดงผลิตภัณฑ์ |
การชำระเงิน:
| Minimum Order Quantity: | 100 |
|---|---|
| ราคา: | 450usd |
| Packaging Details: | cartoon box |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T |
| Supply Ability: | 30% deposit TT in advanced , 70% balance paid before delivery |
|
ข้อมูลรายละเอียด |
|||
| function: | cooling only | power capacity: | 9000BTU-12000BTU |
|---|---|---|---|
| PV configuration: | 550w solar panel *3 | battery configuration: | 48V 100ah battery *4 |
| เน้น: | 9000-12000BTU solar air conditioner,solar air conditioner with panels,550W solar air conditioner |
||
รายละเอียดสินค้า
Cooling & Heating Function On/Off Grid Solar Powered Solar Air Conditioner For Home Using
Product Attributes
| Attribute | Value |
|---|---|
| Function | Cooling only |
| Power Capacity | 9000BTU-12000BTU |
| PV Configuration | 550w solar panel *3 |
| Battery Configuration | 48V 100ah battery *4 |
Product Description
- 100% energy saving in day time. Only solar panel drive
- AC grid power limiter, limit AC power from 0-600W
- AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
- No inverter, no battery, no charge controller
- Full DC driven
- Wide operating temperature (-10℃ to 58 ℃)
- Long warranty years
Specifications
| ITEMS | UNIT | COL-09GW-ACDC-TH | COL-12GW-ACDC-TH | COL-18GW-ACDC-TH | COL-24GW-ACDC-TH |
|---|---|---|---|---|---|
| Grid power voltage | V/Hz | 208-240V / 50/60 Hz 110/120V 60Hz |
208-240V / 50/60 Hz 110/120V 60Hz |
208-240V / 50/60 Hz | 208-240V / 50/60 Hz |
| Solar power voltage | V | DC 90-380V | DC 90-380V | DC 90-380V | DC 90-380V |
| Cooling capacity | BTU | 9000(2900-12000) | 12000 (3500-15500) | 18000 (6900-19000) | 24000 (6900-26000) |
| Heating capacity | BUT | 9500 (850-12000) | 13000 (3900-16000) | 19800 (6900-19500) | 24000(6900-27000) |
| Cooling power input | W | 690 (130-1350) | 1030 (260-1700) | 1520(410-1970) | 2100 (410-2600) |
| Heating power input | W | 670 (120-1280) | 980 (220-1360) | 1550 (350-1670) | 2180 (410-2650) |
| max power input | w | 1450 | 1870 | 2860 | 3800 |
| SEER Cooling | W/W | SEER 6.6 | SEER 6.6 | SEER 6.6 | SEER 6.6 |
| SEER COOLING | BTU/H/W | SEER 22.52 | SEER 22.52 | SEER 22.52 | SEER 22.52 |
| SCOP HEATING | W/W | SCOP 4.6 | SCOP 4.6 | SCOP 4.0 | SCOP 4.0 |
| SCOP HEATING | BTU/H/W | SCOP 15.7 | SCOP 15.7 | SCOP 13.6 | SCOP 13.6 |
| Air flow volume | m3/h | 650 | 650 | 900 | 1200 |
| Outdoor net dimension | mm | 795*290*555 | 795*290*555 | 795*290*555 | 860*304*733 |
| Outdoor packing dimension | mm | 910*400*630 | 910*400*630 | 910*400*630 | 1005*450*820 |
| Indoor net dimension | mm | 895*203*300 | 895*203*300 | 1000*240*310 | 1130*245*320 |
| indoor packing dimention | mm | 965*275*370 | 965*275*370 | 1075*310*385 | 1195*310*390 |
| Indoor unit weight | kg | 12 | 12 | 15 | 17.5 |
| Outdoor unit weight | kg | 38 | 38 | 43 | 55 |
| Loading QTY | 20GP/40GP/40HQ | 90/176/194 | 90/176/194 | 79/160/180 | 50/105/120 |
